Asus Z170M-Plus – Motherboard Specifications
General Information
| Manufacturer | Asus |
|---|---|
| Year | 2015 |
| Socket(s) | 1x LGA 1151 |
| Form Factor | Micro-ATX 227 x 244 mm |
| Chipset | Intel Z170 |
| Market | Consumer |
| Asus Z170M-Plus Manual | Download Manual |
| Product Page | Go to website |
Asus Z170M-Plus Review and Specifications
Asus Z170M-Plus is a Micro ATX motherboard From factor, also known as Asus Z170M-Plus Micro ATX LGA1151 Motherboard and Asus Z170M-Plus Micro ATX DDR4 Motherboards, Z170M-Plus is manufactured by Asus in 2026, it’s chipset is Intel Z170, and Socket is LGA 1151.
Asus Z170M-Plus Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151), DDR4 2400 (Intel® 7th Gen CPUs) / 2133 (Intel® 6th Gen CPUs) Rams, AMD Quad CrossFireX™, 6 SATA3, 2 Ultra M.2 (One supports PCIe Gen3 x4 & SATA3, the other one supports PCIe Gen3 x4 only), Triple Monitor

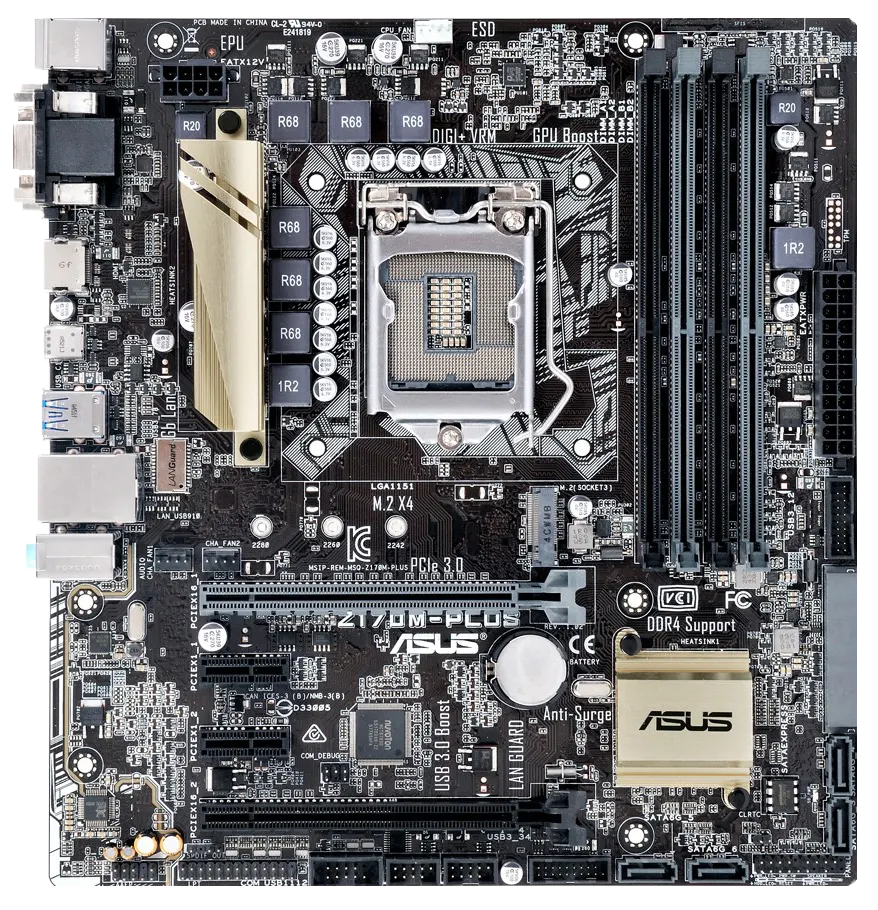

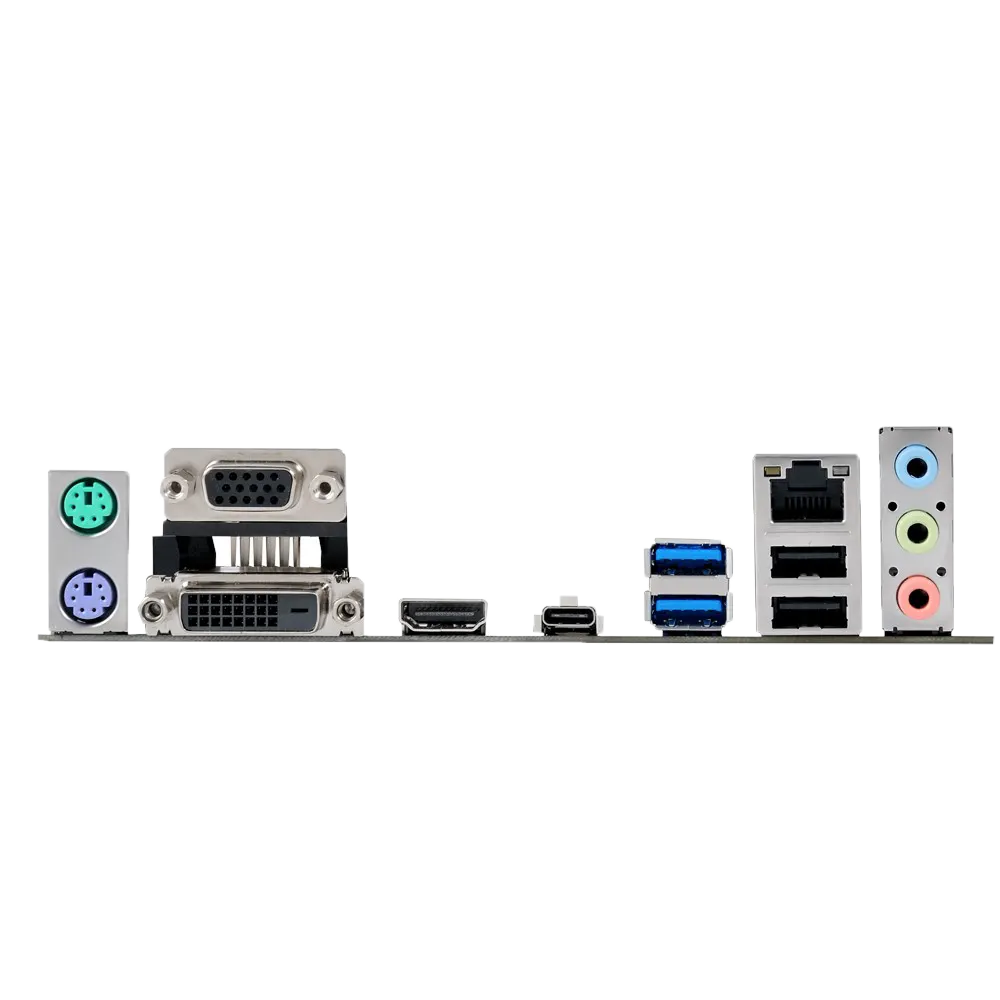

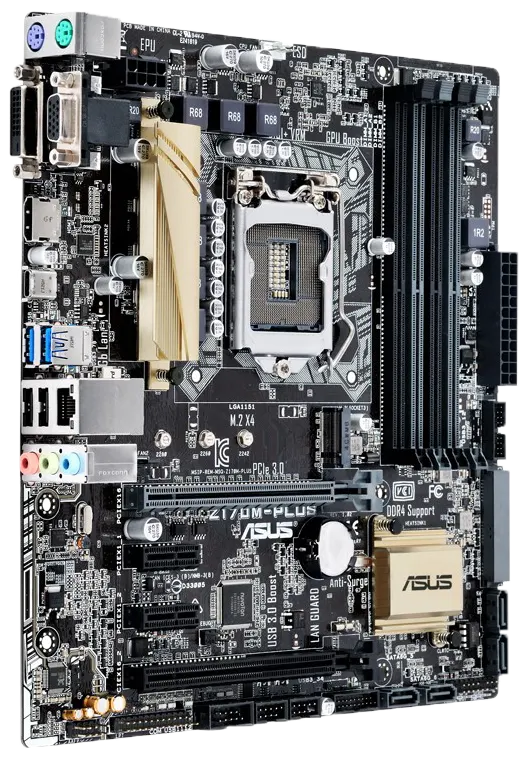

Back IO
Audio
3x Analog Audio Jack
Misc
2x PS/2
Network
1x RJ-45
USB
- 2x USB 2.0 Type-A
- 2x USB 3.0 Type-A
- 1x USB 3.0 Type-C
Video
- 1x DVI-D
- 1x HDMI Out
- 1x VGA
Internal Connections
Audio
1x SPDIF Out Header
Fans
3x 4-pin Fan Header
Misc
- 1x Parallel Header
- 1x Serial Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 1x SATA Express
- 6x SATA3
USB
- 2x USB 2.0 Header
- 2x USB 3.0 Header
Misc. Information
| PCB Color | Brown |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel I219-V | 1000 Mbit | No |
Audio
Audio
| Audiochip | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 |
Expansion Slots
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | No |
Slots
- 1x PCI-E 3.0 x16 @ x16
- 1x PCI-E 3.0 x16 @ x4
- 2x PCI-E 3.0 x1 @ x1
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2242, 2260, 2280, | PCI-E 3.0 x4, SATA3, |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 3466 MHz |
| Maximum Capacity | 64 GB |
| Maximum Channels | 2 |
| ECC support | No |
