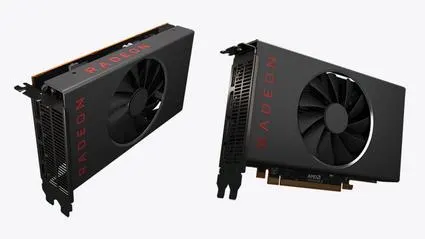

AMD Sneaks Out The Radeon RX 5300 For Casual 1080p Gaming

by Rustam Iqbal

AMD from an extended time serving their users with the premium quality products and maintaining their standard within the market we can say they're the simplest merchandise of the gaming performances. Although that's not the start we have already heard about the Radeon RX 5300.

But as AMD took a protracted time to inaugurate it so there is a little curious about it as end-users are anxiously anticipating what new they need within the market, because the launch is finally organized by the manufacturers.

That's not the primary thing that catches the attention of the people. AMD has gratification within the entry-level graphic cards. They always deliver graphic cards with marvelous performance.

These graphic cards work on 1080p. But that's so irresolute they're almost on the highest of the list of foremost graphic cards. These graphic cards are considered to be the foremost latest one within the market.

These are most absolute on the OEMs only. the sole place up till now that's seen up to now is that the pre-built machines RX 5300 has been seen in these in-built machines.

The features that are installed in these gaming graphic cards is that the PCIe 4.0 interface and also the connection could be an x 8. it'll not be much advantageous because the connection is constricted.

Its intramural is organized with the AMDs Navi 14 die which resembles the 7nm TSMC a produced silicon that's expected to measure inside it. the standard seems to be the most effective but if we speak about the specs of those cards then it's 1408 stream processors ( SPs). It also contains a game booster.

AMD Radeon RX 5300 Specifications

Perfect Tech Reviews AMD Radeon RX 5500 XT AMD Radeon RX 5300 Nvidia GeForce GTX 1650
Architecture (GPU) RDNA (Navi 14) RDNA (Navi 14) Turing (TU117)
ALUs 1,408 1,408 896
Texture Units 88 88 56
Base Clock Rate 1,607 MHz ? 1,485 MHz
Nvidia Boost/AMD Game Rate 1,717 MHz 1,448 MHz 1,665 MHz
AMD Boost Rate 1,845 MHz 1,645 MHz N/A
Memory Capacity 4GB GDDR6 3GB GDDR6 4GB GDDR5
Memory Speed 14 Gbps 14 Gbps 8 Gbps
Memory Bus 128-bit 96-bit 128-bit
Memory Bandwidth 224 GBps 168 GBps 128 GBps
ROPs 32 32 32
L2 Cache 2MB 1.5MB 1MB
TDP 130 100 75W
Transistor Count 6.4 billion 6.4 billion 4.7 billion
Die Size 158 mm² 158 mm² 200 mm²

This booster clock up to 1448 MHz and also the other is 1645 MHz respectively. It also incorporates a memory of 3GB which is 14 Gbps GDDR6 memory. This memory forms a nexus of just about 96-bit memory bus so apparently, the memory bandwidth ranges up to 168 Gbps maximum.

The consumers who are searching all about it and consider it to be the bosom in specifications than you're not crazy in the least. If we are saying it substantially the RTX RX 5300 could be a block version of Radeon RX 5500 XT which contains a lot more in common with their specs.

These models share the identical shader count. If we discuss the differential factor of both the models than the most one is its lower clock speed. That's not the sole different specs others also exist for example its memory is additionally less in its even more restricted on the opposite Radeon RX 5300 model. It needs a touch power consumption.

These graphic cards also are listed in line with the 100W TBP ( total board power). It can easily run away with a 6-pin PCIe power connector. These cards are easily palatable although they need an inner system consisting of 350W power supply.

To make it superior AMD introduced some charts thereon where they punch the graphic cards of the Navi based graphics with chip makers con with Nvidia's GeForce GTX 1650. But they do not open up the variant which is employed con to the GeForce GTX 1650. If you are attempting to memorize the NVIDIA graphic cards then you need to know they need four variant versions of the GeForce GTX 1650.

AMD asserts about the performance of their graphic cards where they state that their graphic cards perform well between 18.6% to 56.8% with the next speed compared to the GeForce GTX 1650. they're listed with famous titles like battlefield 5. the opposite titles include monster hunter world, call of duty, modern welfare, and therefore the last one is that the player's unknown battleground.

Hese are tested with the high and ultra settings of the tests. The chipmaker isn't easy about the resolution but it's an assumption that the graphic cards processed for 1080p gaming so we will say the resolution is employed.
